Companies that deal with large volumes of products - such as distributors, industries and retail chains - often face the challenge of identifying products based on inaccurate, incomplete or varied textual descriptions. In environments where data is entered manually, typos, abbreviations and different trade names can make it difficult to correctly identify items in systems such as ERPs, CRMs and e-commerce platforms.

In this scenario, there is a common need for tools that can:

Interpret informal or incorrect descriptions provided by users;
Suggest the most similar products based on semantic similarity;
Guarantee a fallback with traditional algorithms (such as fuzzy matching) if the semantic search does not find relevant results;
Integrate with APIs and automated flows of intelligent agents.

In this tutorial, you will learn how to create an AI agent specialized in resolving inconsistencies in customer return invoices. The agent is able to interact with an MCP server that provides vector search and invoice retrieval tools, allowing the agent to automatically find the company's original A/R invoice based on information provided by the customer.

Communication between the agent and the server takes place via the MCP (Multi-Agent Communication Protocol) protocol, guaranteeing modularity, scalability and efficient integration between services.

This agent is based on an Oracle Cloud Generative AI language model and integrates with dynamically declared tools managed by an MCP server.

Prerequisites

Before you start, make sure you have the following items:

Python 3.10 or higher installed
Access to an Oracle Cloud account with the OCI Generative AI service enabled
Library langchain installed and configured
Access to the cohere.command-r-08-2024 model via OCI Generative AI
Auxiliary libraries installed:
- oracledb
- sentence_transformers
- numpy
- mcp-server-fastmcp
- asyncio
- langchain_core
- langchain_community
- mcp
- langgraph
- langchain_mcp_adapters
- phoenix (for observability with OpenTelemetry)
- opentelemetry-sdk, opentelemetry-exporter-otlp
A functional MCP server with the tools:
- resolve_ean
- search_vectorized_product
- fetch_notes_by_criteria
File server_nf_items.py configured to run as an MCP server simulating an ERP

Objectives

By the end of this tutorial, you will be able to:

Configure an AI agent with LangGraph and LangChain to work with structured prompts
Integrate this agent with an MCP server via the stdio protocol
Use remote tools registered on the server to:
- Perform vector searches from product descriptions
- Identify the most likely EAN code for an item
- Search for original invoices based on criteria such as customer, state and price
Monitor agent execution in real time using Phoenix and OpenTelemetry
Simulate a real problem resolution based on a JSON input such as:

``json { "customer": "Customer 43", "description": "Harry Potter", "price": 139.55, "location": "RJ" }

Task 1: Create an Oracle Autonomous Database 23ai (Always Free)

In this step, you will learn how to provision an Oracle Autonomous Database 23ai in Always Free mode. This version offers a fully managed environment, ideal for development, testing and learning, at no additional cost.

Before you start, make sure you

You have an Oracle Cloud Infrastructure (OCI) account. If you don't already have one, you can register for free at oracle.com/cloud/free.
Have access to the Oracle Cloud Console to manage your cloud resources.

Steps to Create the Database

**Access the Oracle Cloud Console:
- Navigate to Oracle Cloud Console and log in with your credentials.
Start Autonomous Database Provisioning:
- From the navigation menu, select "Oracle Database" and then "Autonomous Database".
- Click on "Create Autonomous Database Instance".
**Configure the Instance Details:
- Database Name: Choose an identifying name for your instance.
- Workload Type**: Select between Data Warehouse or Transaction Processing, according to your needs.
- Compartment**: Choose the appropriate compartment to organize your resources.
**Select the Always Free option:
- Make sure you check the "Always Free" option to ensure that the instance is provisioned for free.
Set Access Credentials:
- Create a secure password for the ADMIN user, which will be used to access the database.
Finalize Provisioning:
- Review the settings and click "Create Autonomous Database".
- Wait a few minutes for the instance to be provisioned and available for use.

Task 2: Run the Autonomous Database Table Creation Script

Now that Oracle Autonomous Database 23ai has been successfully provisioned, the next step is to prepare the database for our use case. Let's run the SQL script script.sql that creates three essential tables for the scenario of reconciling invoices with AI agents:

PRODUCT
INVOICE
INVOICE_ITEM

Steps to Run the Script

**Access the Autonomous Database:
- In the Oracle Cloud Console, go to "Oracle Database" > "Autonomous Database".
- Click on the name of the newly created instance.
**Open the SQL Console:
- In the instance panel, click on "Database Actions".
- Then click on "SQL" to open the SQL Console in the browser.
Copy and Paste the SQL Script:
- Open the file script.sql locally and copy all the contents.
- Paste it into the SQL Console editor.
**Run the script:
- Click "Run" or press Ctrl+Enter to execute.
- Wait for confirmation that the commands have been executed successfully.
Validate the Created Tables:
- You can use the following commands to verify that the tables have been created:
```
SELECT table_name FROM user_tables;
```

Task 3: Insert Example Data into Tables

With the tables created in the Autonomous Database, it's now time to insert dummy data that will simulate a real scenario for the application of AI agents. We will use two SQL scripts:

insert_products_books.sql - inserts a list of books as products, with their respective EANs and descriptions.
notas_fiscais_mock.sql - inserts mock A/R invoice records, associated with customers, products and prices.

This data will be used by AI agents to resolve inconsistencies in returns invoices.

Steps to Run the Scripts

**Access the SQL Console:
- In the Oracle Cloud Console, go to your Autonomous Database instance.
- Go to Database Actions > SQL.
Run the Product Script:
- Open the contents of the file insert_products_books.sql and paste it into the SQL editor.
- Click on "Run" or press Ctrl+Enter.
Run the Invoice Script:
- Now open the contents of the file notas_fiscais_mock.sql and paste it into the editor.
- Run in the same way.

**Validate the entered data:

You can check the data with commands such as:

SELECT * FROM PRODUCTS;
SELECT * FROM NOTA_FISCAL;
SELECT * FROM ITEM_NOTA_FISCAL;

Task 4: Create and Compile the Advanced Search Function in the Database

The next step is to create a PL/SQL function called fn_advanced_search, which performs intelligent searches for keywords in product descriptions. This function will be used by AI agents as part of the resolve_ean tool, allowing them to find the nearest EAN code based on the description provided by a customer on the returns note.

What does the function do?

The fn_advanced_search function performs:

**Tokenization of the terms entered (e.g. "harry poter stone" becomes ["harry", "poter", "stone"]).
Direct search in descriptions (LIKE '%term%') → +3 points.
Phonetic search with SOUNDEX → +2 points.
Search for similar writing with UTL_MATCH.EDIT_DISTANCE <= 2 → +1 ponto.
Soma a pontuação para cada produto e retorna aqueles com score > 0.
Returns the products as objects of type result_product, containing:
- code (EAN),
- description of the product,
- similarity (search score).

Execution steps

**Copy and paste the complete script into the Autonomous Database SQL Console.
- This includes:
  - Creating the products table (if it hasn't already been done).
  - Creating a text index.
  - Types product_result and product_result_tab.
  - The fn_advanced_search function.
  - Optional tests.
**Run the complete script. The result should be Function created and Type created.
**Test the function with simulated descriptions.

SELECT *
FROM TABLE(fn_busca_avancada('harry poter stone'))
ORDER BY similarity DESC;

Task 5: Vectorize Products for Semantic Search with AI

In this task, we will complement advanced SQL-based search with a new approach based on semantic vectors. This will be especially useful for AI agents that use embeddings (numerical representations of phrases) to compare similarity between product descriptions - more flexibly and intelligently than word or phonetic searches.

To do this, we will use the Python script process_vector_products.py, which connects to the Oracle database, extracts the products from the PRODUCTS table, transforms their descriptions into vectors (embeddings), and builds a vector index using the Oracle database itself.

What does the script do?

**Reading the products from the products table via oracledb;
**Generates the embeddings using the all-MiniLM-L6-v2 model from the sentence-transformers package;
**Creation of the embeddings_products table to store the vectors directly in Oracle;
Inserting or updating the records, saving the vector as a binary BLOB (in serialized float32 format).

> Note:** The embeddings are converted into bytes with np.float32.tobytes() to be stored as a BLOB. To retrieve the vectors, use np.frombuffer(blob, dtype=np.float32).

This format allows future similarity searches to be done directly via SQL or by loading the vectors from the database for operations with np.dot, cosine_similarity or integration with LLMs.

This script generates semantic embeddings for products and writes these vectors to the Oracle 23ai database. The main points are highlighted below:

1. configuring the connection to Oracle using Wallet

The code uses the oracledb library in thin mode and configures secure access using an Oracle Wallet.

os.environ["TNS_ADMIN"] = WALLET_PATH
connection = oracledb.connect(
    user=USERNAME,
    password=PASSWORD,
    dsn=DB_ALIAS,
    ...
)

2. Consultation of the Product Table

The products table contains the original data (ID, code and description). These descriptions are used as the basis for generating the semantic vectors.

cursor.execute("SELECT id, code, description FROM products")

3. generating embeddings with `sentence-transformers`

The all-MiniLM-L6-v2 model is used to transform product descriptions into high-dimensional numerical vectors.

model = SentenceTransformer('all-MiniLM-L6-v2')
embeddings = model.encode(descriptions, convert_to_numpy=True)

4. Creating the Embeddings Table (if it doesn't exist)

The embeddings_products table is created dynamically with the following fields:

id: product identifier (primary key)
code: product code
description: original description
vector: BLOB containing the vector serialized in float32

CREATE TABLE embeddings_products (
    id NUMBER PRIMARY KEY,
    code VARCHAR2(100),
    description VARCHAR2(4000),
    BLOB vector
)

> Note: The creation uses EXECUTE IMMEDIATE inside a BEGIN...EXCEPTION to avoid an error if the table already exists.

5. Insert or Update via `MERGE`

For each product, the vector is converted into bytes (float32) and inserted or updated in the embeddings_products table using a MERGE INTO.

vector_bytes = vector.astype(np.float32).tobytes()

MERGE INTO embeddings_products ...

To Run the Script

Remember that you need Oracle Wallet downloaded and configured.

Run it in the terminal:

python process_vector_products.py

Done! The products in the database have been vectorized.

Why is this important?

Vector search is highly effective for finding products even when the description is subjective, imprecise or in natural language.

Understanding the Code: LLM Agent with MCP Server

This project is made up of 3 main components:

ReAct Agent with LangGraph + OCI LLM (File main.py)
MCP Server with Invoice Resolution Tools (File server_nf_items.py)
Search for Similar Products with OCI Generative AI and FAISS (File product_search.py)

Below we detail the functionality of each component and highlight the most important parts of the code.

1. ReAct Agent with LangGraph + LLM from OCI

This component runs the main application, where the user interacts with the agent based on Oracle Cloud's LLM (Large Language Model). It communicates with the MCP server via a stdio protocol.

Main features:

Telemetry configuration with Phoenix and OpenTelemetry

px.launch_app()
...
trace.set_tracer_provider(provider)

Creation of the LLM model using ChatOCIGenAI:

llm = ChatOCIGenAI(
    model_id="cohere.command-r-08-2024",
    ...
)

Definition of the task-oriented prompt for reconciling invoices**:

prompt = ChatPromptTemplate.from_messages([
    ("system", """You are an agent responsible for resolving inconsistencies in invoices...""),
    ("placeholder", "{messages}")
])

Local MCP server execution via stdio

server_params = StdioServerParameters(
    command="python",
    args=["server_nf_items.py"],
)

Main user interaction loop:

while True:
    query = input("You: ")
    ...
    result = await agent_executor.ainvoke({"messages": memory_state.messages})

Integration with tools exposed by the MCP server:

agent_executor = create_react_agent(
    model=llm,
    tools=tools,
    prompt=prompt,
)

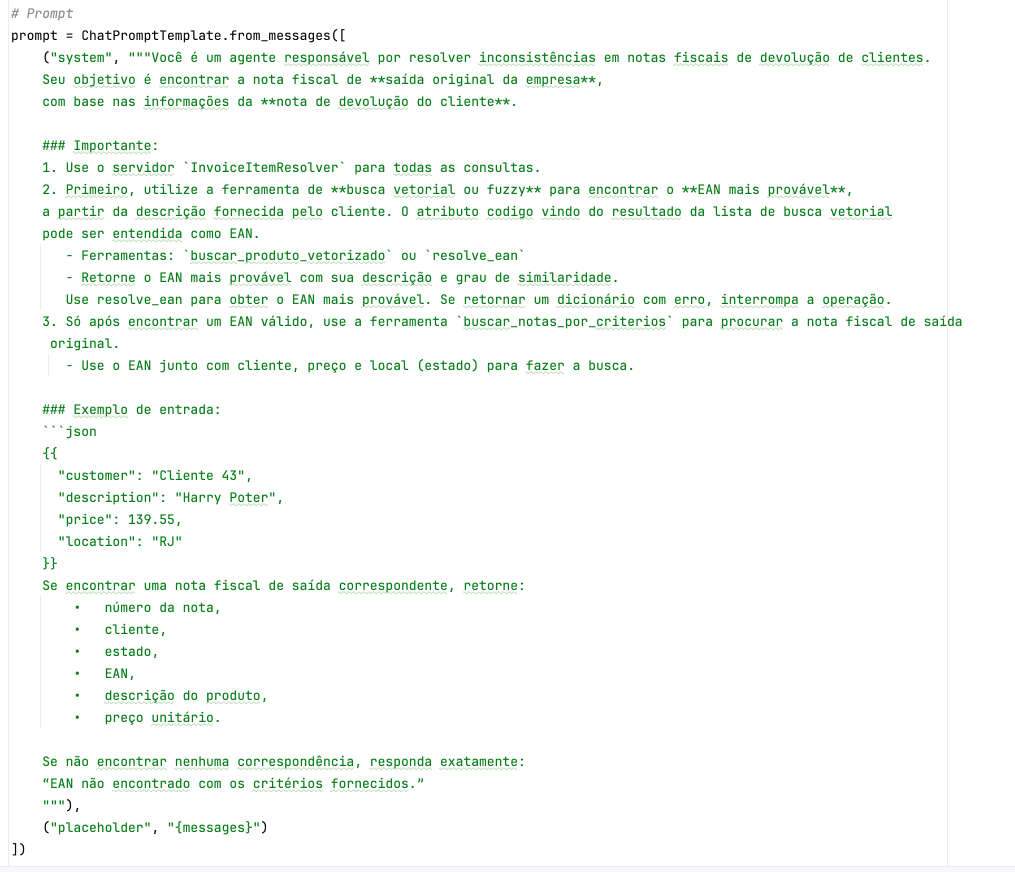

Prompt

The prompt is essential for establishing the process and operating rules for the AI Agent.

2. MCP Server with Resolution Tools

This server responds to agent calls by providing tools that access an Oracle database with product and invoice information.

Main features:

Initialization of the MCP server with the name InvoiceItemResolver:

mcp = FastMCP("InvoiceItemResolver")

Connection to Oracle bank via Oracle Wallet:

connection = oracledb.connect(
    user=USERNAME,
    password=PASSWORD,
    dsn=DB_ALIAS,
    wallet_location=WALLET_PATH,
    ...
)

Implementation of MCP tools:

`search_vectorized_product`

Searches for similar products with embeddings:

@mcp.tool()
def fetch_vectorized_product(description: str) -&gt; dict:
    return buscador.buscar_produtos_similares(descricao)

`resolve_ean`

Resolves an EAN based on description similarity:

@mcp.tool()
def resolve_ean(description: str) -&gt; dict:
    result = execute_search_ean(description)
    ...
    return {"ean": result[0]["code"], ...}

`search_notes_by_criteria`

Searches for A/R invoices based on multiple filters:

@mcp.tool()
def fetch_invoices_by_criteria(customer: str = None, state: str = None, price: float = None, ean: str = None, ...):
    query = """
        SELECT nf.numero_nf, ...
        FROM nota_fiscal nf
        JOIN item_nota_fiscal inf ON nf.numero_nf = inf.numero_nf
        WHERE 1=1
        ...
    """

Running the server in stdio mode:**

if __name__ == "__main__":
    mcp.run(transport="stdio")

3. Search for Similar Products with OCI Generative AI and Vector Database

This module product_search.py implements a Python class that allows you to search for semantically similar products from a textual description, using:

Embeddings from OCI Generative AI
Vector indexes with Oracle Database 23ai
Fuzzy comparisons with RapidFuzz as fallback

Task 5: Configuring the Model and Embeddings in the MCP Agent

Let's configure the language model and embeddings used by the conversational agent based on the MCP protocol, using Oracle Cloud Infrastructure (OCI) Generative AI services.

1 Configuring the Language Model (LLM)

The language model is responsible for interpreting messages, generating responses and acting as the agent's main brain.

Configure in the main.py file

from langchain_community.chat_models.oci_generative_ai import ChatOCIGenAI

llm = ChatOCIGenAI(
    model_id="cohere.command-r-08-2024",
    service_endpoint="https://inference.generativeai.us-chicago-1.oci.oraclecloud.com",
    compartment_id="ocid1.compartment.oc1..aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa",
    auth_profile="DEFAULT",
    model_kwargs={"temperature": 0.1, "top_p": 0.75, "max_tokens": 2000}
)

Parameters

Parameter	Description
`model_id`	Generative AI model ID, e.g. `cohere.command-r-08-2024`
`service_endpoint`	Generative AI service regional endpoint
`compartment_id`	OCID of the OCI compartment
`auth_profile`	Name of the profile configured in the file `~/.oci/config`
`model_kwargs`	Temperature, top-p and response size

How to List Available Models

Using the CLI

  oci generative-ai model list --compartment-id <seu_compartment_id>

Using the Python SDK

from oci.generative_ai import GenerativeAiClient
from oci.config import from_file

config = from_file(profile_name="DEFAULT")
client = GenerativeAiClient(config)

models = client.list_models(compartment_id=config["compartment_id"])
for model in models.data:
    print(model.display_name, model.model_id)

2. Configuring Embeddings for Semantic Search

Searching for similar products or contextual information depends on vector embeddings.

Example of use in the agent

@mcp.tool()
def fetch_vectorized_product(description: str) -&gt; dict:
    return buscador.buscar_produtos_similares(descricao)

Change the parameters (File product_search.py) as shown below:


class SimilarProductSearch:
    def __init__(
            self,
            top_k=5,
            minimum_distance=1.0,
            model_id="cohere.embed-english-light-v3.0",
            service_endpoint="https://inference.generativeai.us-chicago-1.oci.oraclecloud.com",
            compartment_id="ocid1.compartment.oc1..aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa",
            auth_profile="DEFAULT",
            wallet_path="/WALLET_PATH/Wallet_oradb23ai",
            db_alias="oradb23ai_high",
            username="USER",
            password="Password"
    ):

Parameters Explained

Parameter	Description
`top_k`	Number of suggestions returned.
`minimum_distance`	Maximum distance to consider relevant result.
`model_id`	ID of the embedding model in the OCI (e.g. `cohere.embed-english-light-v3.0`).
`service_endpoint`	OCI Generative AI regional endpoint.
`compartment_id`	compartment OCID.
`auth_profile`	Profile name in `~/.oci/config` file.
`wallet_path`	Path to the Oracle Database 23ai wallet.
`db_alias`	Database alias.
`username`	Database user.
`password`	Database password.

Configuring the MCP Server

Just as you did when executing the [process_vector_products.py] code(./source/process_vector_products.py), you will need to configure the Oracle Wallet for the 23ai database.

Modify the parameters according to your settings:

import os

# Oracle Wallet settings
WALLET_PATH = "/path/to/Wallet"
DB_ALIAS = "oradb23ai_high"
USERNAME = "admin"
PASSWORD = "..."

# Define the environment variable required for the Oracle client
os.environ["TNS_ADMIN"] = WALLET_PATH

With this, the LLM model and embeddings are ready to be used by the MCP agent with LangGraph and LangChain.

Task 6: Test the Product and Invoice description search

Run the file main.py as shown below:

python main.py

When the You: prompt appears, type:

{ "customer": "Customer 43", "description": "Harry Potter", "price": 139.55, "location": "RJ"}

Note that the name of the book "Harry Potter" is spelled wrong, but the engine can find it without any problems.

Note that the services have been executed:

fetch_vectorized_product
resolve_ean
fetch_notes_by_criteria

Now type:

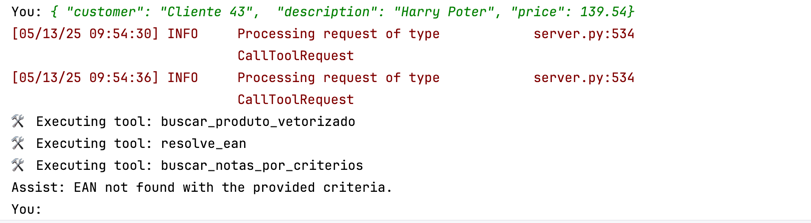

 { "customer": "Customer 43", "description": "Harry Poter", "price": 139.54}

You will see that there was no Invoice record found. This is because location is key to finding an invoice.

Type:

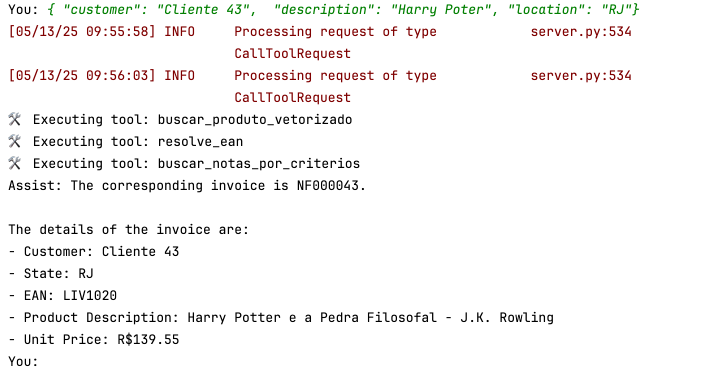

{ "customer":"Cliente 43", "description":"Harry Poter", "location":"RJ"}

This time, we enter the location but omit the unit price:

And yet the invoice was found. This is because the price is not fundamental, but it does help to close the gap to be more assertive.

Some examples for testing:

{ "customer": "Cliente 43", "description": "Harry Potter", "price": 139.55, "location": "RJ"}
{ "customer": "Customer 43", "description": "Harry Poter", "price": 139.54, "location": "RJ"}
{ "customer": "Customer 43", "description": "Harry Poter", "price": 141.60, "location": "RJ"}
{ "customer": "Customer 43", "description": "Harry Poter", "price": 139.54}
{ "customer": "Cliente 43", "description": "Harry Poter", "location": "RJ"}
{ "customer": "Cliente 43", "description": "Harry Poter", "location": "SP"}


{ "customer": "Customer 149", "description": "Expresso oriente", "location": "SP"}
{ "customer": "Customer 149", "description": "Expresso oriente", "location": "RJ"}
{ "customer": "Customer 149", "description": "Expresso oriente"}
{ "customer": "Customer 149", "description": "Expresso oriente", "price": 100.00, "location": "SP"}

Conclusion

With these two components integrated, the system enables an agent based on Oracle LLM:

Use remotely hosted tools via MCP
Perform intelligent searches for products and EANs
Locate corresponding A/R invoices
Record everything in observability via Phoenix + OpenTelemetry

This modular design allows for reusability and easy evolution of the system to domains other than invoices.

References

Acknowledgments

Author - Cristiano Hoshikawa (Oracle LAD A-Team Solution Engineer)

README_en.md

Build an AI Agent with MCP Server for Invoice Resolution

Introduction

Prerequisites

Objectives

Task 1: Create an Oracle Autonomous Database 23ai (Always Free)

Steps to Create the Database

Task 2: Run the Autonomous Database Table Creation Script

Steps to Run the Script

Task 3: Insert Example Data into Tables

Steps to Run the Scripts

Task 4: Create and Compile the Advanced Search Function in the Database

What does the function do?

Execution steps

Task 5: Vectorize Products for Semantic Search with AI

What does the script do?

1. configuring the connection to Oracle using Wallet

2. Consultation of the Product Table

3. generating embeddings with sentence-transformers

4. Creating the Embeddings Table (if it doesn't exist)

5. Insert or Update via MERGE

To Run the Script

Why is this important?

Understanding the Code: LLM Agent with MCP Server

1. ReAct Agent with LangGraph + LLM from OCI

Main features:

Prompt

2. MCP Server with Resolution Tools

Main features:

search_vectorized_product

resolve_ean

search_notes_by_criteria

3. Search for Similar Products with OCI Generative AI and Vector Database

Task 5: Configuring the Model and Embeddings in the MCP Agent

1 Configuring the Language Model (LLM)

Configure in the main.py file

Parameters

How to List Available Models

Using the CLI

Using the Python SDK

2. Configuring Embeddings for Semantic Search

Example of use in the agent

Parameters Explained

Configuring the MCP Server

Task 6: Test the Product and Invoice description search

Conclusion

References

Acknowledgments

3. generating embeddings with `sentence-transformers`

5. Insert or Update via `MERGE`

`search_vectorized_product`

`resolve_ean`

`search_notes_by_criteria`
